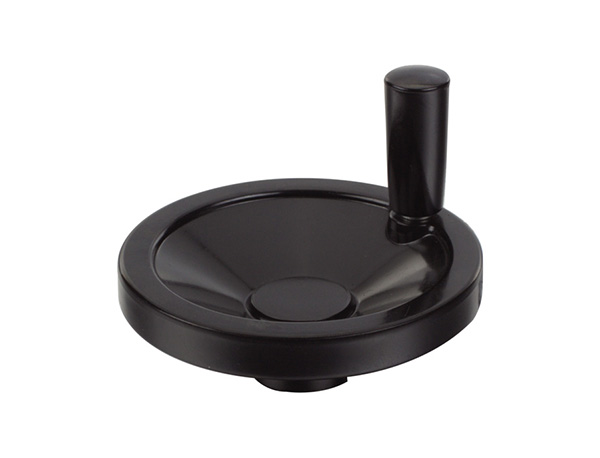

Petty Solid Handwheels With Revolving Handle
  • Petty Solid Handwheels With Revolving Handle
  • Product Name: Petty Solid Handwheels With Revolving Handle
    Model Number: HY8313.2
    Brand Name: Huayang
    Executive Standard: JB\T 7273.2-94 (GB4141.21-84)
    Material: Bakelite
    Surfaced Process: Black
    Place of Origin: Zhejiang, China (Mainland)
Product specification

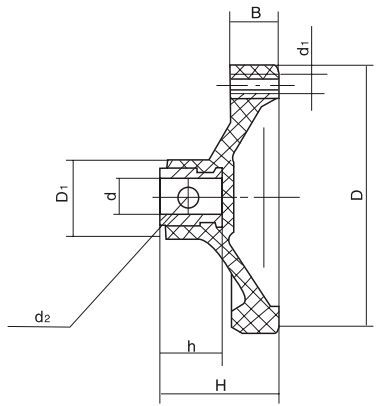

Drawing

小手輪結(jié)構(gòu)圖

Parameter Size

Item No.Main dimensions（mm）Mounting hole
BakeliteDHBD?dhd?d?
HY8313.2\10x80803212221016M53
HY8313.2\12x1001003614281218M64
HY8313.2\12x1251254016281218M84
