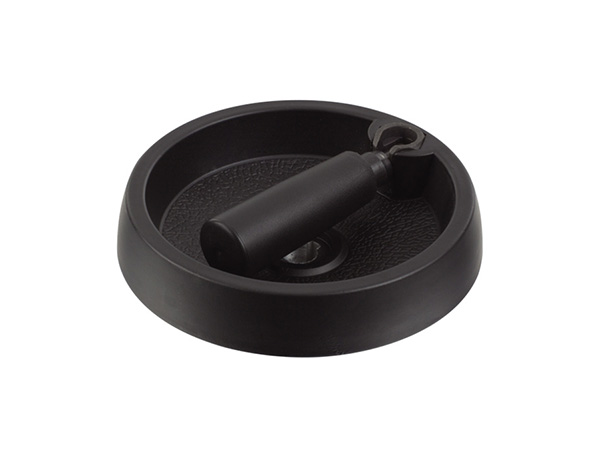

Product Name: Solid Handwheels With Fold-away Handle Model Number: HY8313.22 Brand Name: Huayang Executive Standard: Material: (Handwheel) Aluminum alloy、(Handle) Plastic Surfaced Process: Black Place of Origin: Zhejiang, China (Mainland)
Product specification
Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | ||||
| Aluminum alloy | D | H | B | L | d | h |
| HY8313.22\12(16)x100 | 100 | 40 | 21 | 50 | 12、16 | 18 |
| HY8313.22\12x125 | 125 | 44 | 23 | 63 | 12 | 18 |
| HY8313.22\16x160 | 160 | 48 | 26 | 80 | 16 | 20 |
| HY8313.22\18(32)x200 | 200 | 48 | 28 | 80 | 18、32 | 21 |
| HY8313.22\32x250 | 250 | 48 | 30 | 80 | 32 | 24 |
